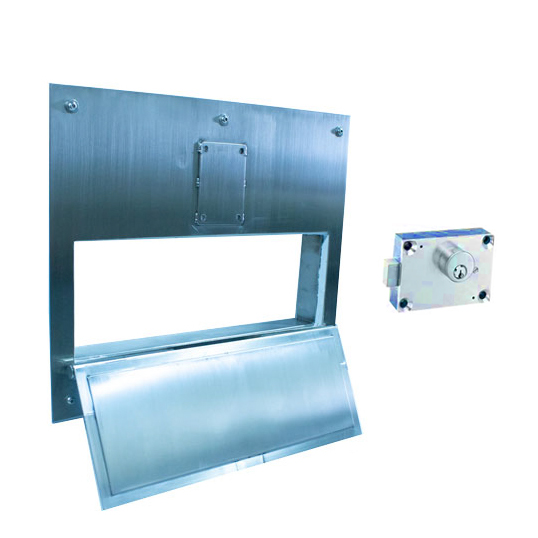

TUS-PTD Pass-Through Door with Lock

Description The TUS-PTD Pass-Through Door with Lock is a high-security solution for transferring food trays or other items between secure rooms, such as detention cells or medical containment areas. Designed for durability and daily use, this unit features a brushed stainless steel tray pass with an interior shelf and heavy-duty hinges. Its clean, tamper-resistant profile includes a mechanical panel lock, allowing secure one-sided or two-sided control. Finished flange and built to endure intensive environments. The unit mounts flush to a wall or is integrated into a larger gate. Data Sheet – TUS-PTD Pass-Through Door with Lock   Key Features 12 Ga. 304 Brushed Stainless Steel construction 20”W x 16”H outer flange; 17.5”W x 6”H pass-through opening Integrated interior shelf for safe tray handling Heavy-duty stainless steel hinges Edges ground smooth for safety Deadbolt mechanical panel lock included (keyed access) • Aluminum bronze lock case. • Bolt, springs, pins, and screws are stainless steel. • bolt dimensions Throw: 5/8” (mortise 9/16”) 1/2” projection when bolt is retracted. Bolt width 1” • Case dimensions: 3” x 4-1/4” x 1-1/4” • Face plate finish for mortise mountings: Satin Stainless Steel Clean, tamper-resistant exterior Designed for institutional, medical, or correctional use Custom size available upon request Made in the USA
